TL;DR:
- Regular asphalt inspections twice a year prevent costly structural failures and extend pavement life.
- A thorough evaluation involves visual checks, specialized tools, and careful documentation of all findings.
An asphalt inspection checklist is a structured evaluation tool property owners and facility managers use to assess surface condition, drainage, safety markings, and structural integrity in a single, repeatable process. Industry professionals refer to this process formally as a pavement condition assessment, and running one twice a year is the minimum standard recommended by pavement maintenance experts. A thorough checklist catches small problems before they become expensive structural failures, protects you from liability, and extends the usable life of your asphalt significantly. Skipping regular evaluations is the single most common reason driveways and parking lots deteriorate years ahead of schedule.
What tools do you need for a thorough asphalt inspection?
The right tools determine how much you actually learn from a walkthrough. A basic asphalt driveway inspection process requires only a few items you likely already own, but advanced evaluations call for specialized instruments.
Basic tools for any property owner:
- A flashlight or headlamp to illuminate low-angle surface shadows that reveal cracks and depressions
- A crack gauge or ruler to measure crack width accurately
- A measuring tape and straightedge to check surface flatness and slope
- A stiff-wire brush to clear debris from cracks before measuring depth
- Chalk or marking paint to flag problem areas for follow-up
Advanced tools for professional-grade evaluation:
- An infrared thermometer to detect temperature differences across the surface. Thermal imaging can reveal subsurface voids by detecting temperature differences over 15°F, which is impossible to spot visually.
- A penetrometer to measure subgrade bearing strength
- A core sampler to extract a cross-section of pavement for lab density testing
- A laser level to verify drainage slope with precision
Pro Tip: If you are inspecting a single residential driveway, the basic toolkit is sufficient. For a commercial parking lot or multi-unit property, invest in an infrared thermometer at minimum. Thermal imaging improves defect detection accuracy by up to 90% compared to manual inspection alone.
The distinction between visual and structural evaluation matters. Visual inspections identify symptoms of failure while structural evaluations quantify load capacity. Both are necessary for accurate, long-term maintenance planning.

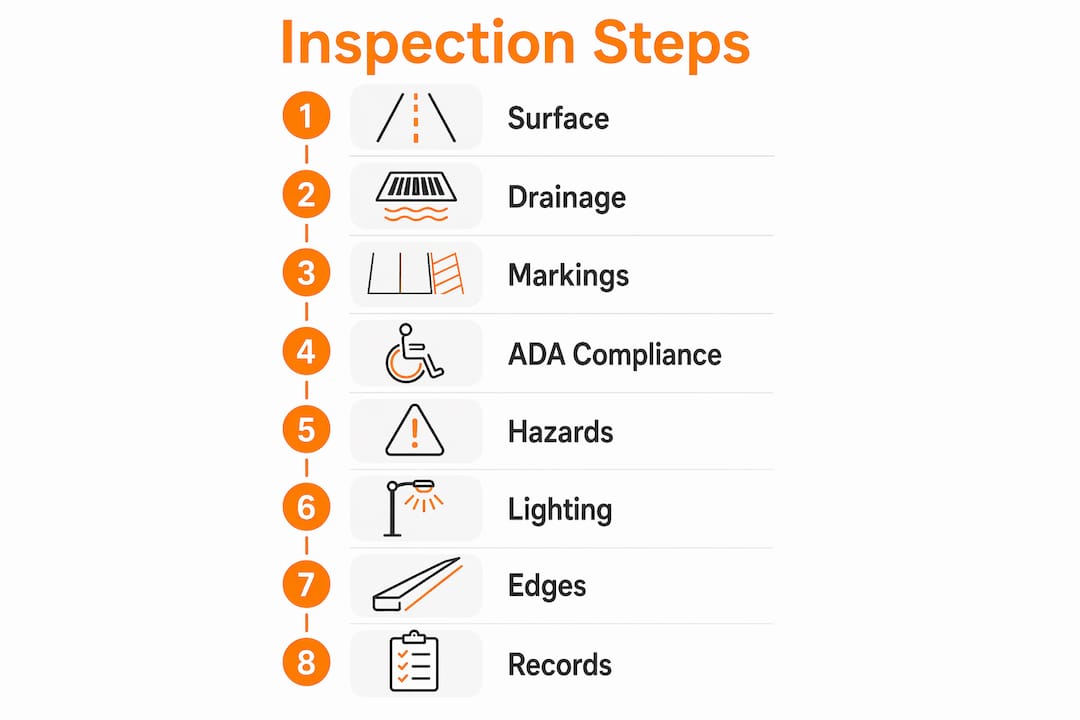

How to systematically evaluate the eight core asphalt inspection areas
A complete asphalt quality inspection covers eight defined categories. Working through them in order prevents you from missing anything and keeps your documentation organized.

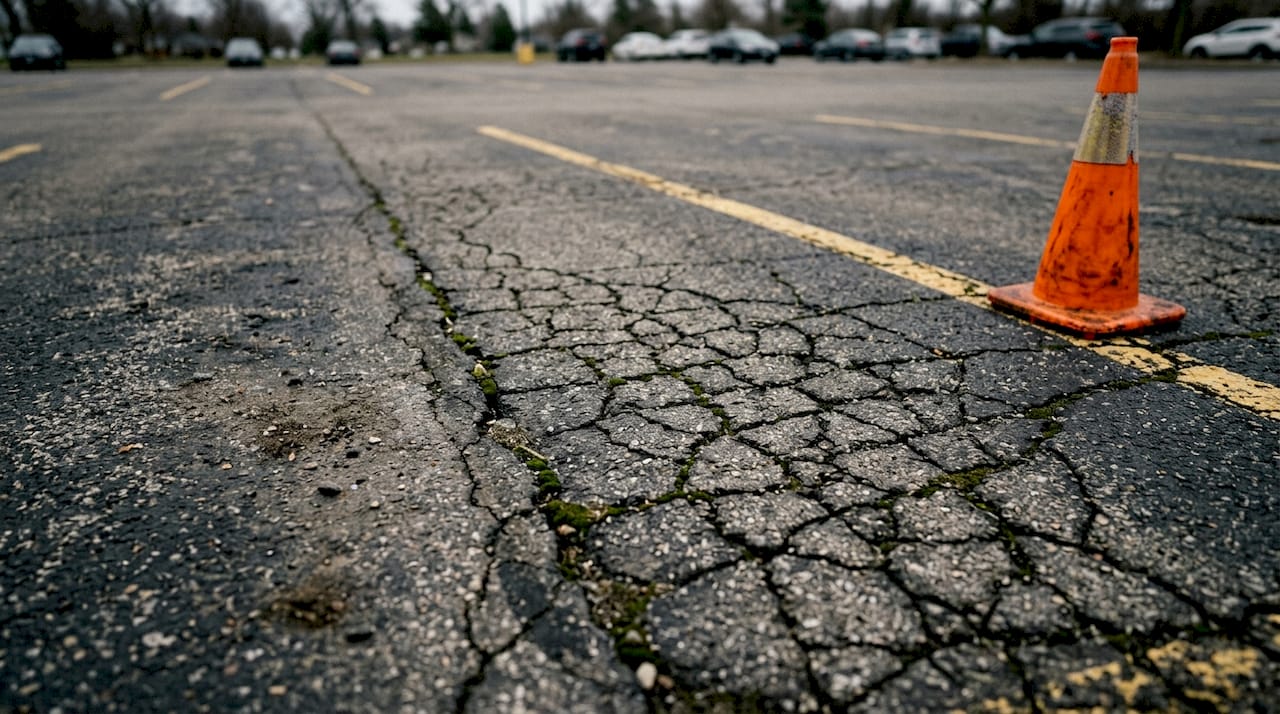

1. Surface condition. Walk the entire surface and look for longitudinal cracks, transverse cracks, and alligator cracking. Alligator cracking, named for its interconnected pattern, signals base-layer failure rather than surface wear. Cracks wider than 1/4 inch allow moisture to penetrate and destabilize the base, accelerating structural damage.
2. Drainage performance. Check that water flows away from the surface and does not pool. Maintaining at least a 2% drainage slope is the accepted standard to prevent standing water and asphalt degradation. You can verify slope with a laser level or a simple water test during or after rain. For a deeper look at how water movement affects your pavement, the importance of proper drainage cannot be overstated, and understanding perimeter drainage systems is equally critical for urban properties.
3. Pavement markings. Inspect painted lines, arrows, and symbols for fading or peeling. Faded markings create traffic confusion and increase accident risk in commercial lots. Check that markings meet current asphalt safety standards for visibility and color contrast.
4. ADA compliance. Verify that accessible parking spaces, ramps, and pathways meet current Americans with Disabilities Act requirements. Confirm that ramp slopes, widths, and surface textures are within code. Non-compliance creates both safety hazards and legal exposure.
5. Trip and fall hazards. Measure any vertical displacement between pavement sections. A lip greater than 1/2 inch at a joint or expansion crack is a documented trip hazard. Flag every raised edge, sunken section, and pothole for immediate attention.
6. Lighting and visibility. Walk the surface after dark or note the position and condition of lighting fixtures. Poor lighting compounds every other hazard on the list.
7. Edge and perimeter integrity. Inspect the edges where asphalt meets curbs, grass, or gravel. Edge crumbling is often the first visible sign of base erosion. Efficient perimeter drainage systems directly affect how well edges hold up over time.
8. Maintenance records. Review prior inspection reports, repair invoices, and sealcoating dates before you walk the surface. Knowing what was repaired and when tells you where to look hardest and what repairs may be overdue.
Pro Tip: Photograph every defect you find. Date-stamped photos create a visual timeline of surface deterioration and are your strongest defense if a slip-and-fall claim ever arises.
How to interpret common distress signs and prioritize repairs
Identifying damage is only half the job. Knowing what each defect means for your repair budget and timeline is what separates a useful asphalt maintenance checklist from a simple walkthrough.
Cracks wider than 1/4 inch require immediate attention. Water enters through these openings, freezes in winter, and expands the crack further with each freeze-thaw cycle. Left untreated, a simple crack becomes a pothole within one to two seasons. Crack filling services address this before the damage reaches the base layer.
Alligator cracking is a structural failure, not a surface problem. The interconnected crack pattern means the base or subgrade can no longer support the load above it. Cold patching over alligator cracking is a temporary fix at best. Experts recommend professional base repairs for structural failures rather than surface patching, because surface treatments do not restore load-bearing capacity.
Potholes, edge deterioration, and surface discoloration each tell a different story. A pothole signals that base material has washed out or compressed. Edge crumbling points to drainage failure at the perimeter. Gray or white surface discoloration means the asphalt binder has oxidized and the surface is becoming brittle. Oxidized pavement loses flexibility and cracks more easily under traffic and temperature stress.
Distinguishing surface wear from structural failure is the most important judgment call in any asphalt quality assurance process. Surface wear, such as minor raveling or hairline cracks, responds well to sealcoating and crack filling. Structural failures require base repair or full-depth reclamation. Treating a structural failure with a surface product wastes money and delays the inevitable.
The Pavement Condition Index, or PCI, is the industry-standard scoring system used to rate pavement from 0 (failed) to 100 (perfect). PCI calculations require corrections for overlapping distresses to avoid overestimating damage and misprioritizing repairs. A PCI score below 40 typically indicates that structural intervention is needed, not just maintenance.
For guidance on identifying and addressing specific crack types, the Asphaltworkx resource on reflective cracking repair covers how these cracks propagate from underlying layers and what stops them.
What are the best practices for scheduling inspections and maintaining records?
Timing and documentation turn a one-time walkthrough into a long-term asset protection program.
Recommended inspection schedule:
- Spring inspection: Assess damage from freeze-thaw cycles and winter plowing. This is the most critical inspection of the year for GTA property owners.
- Fall inspection: Identify and repair any damage before winter sets in. Cracks left open through winter always worsen.
- Post-storm inspection: Conduct checks after severe weather events such as heavy rain, hail, or ice storms. Storm damage often appears within days of the event, not immediately.
Documentation best practices:
- Record the date, weather conditions, and inspector name for every walkthrough.
- Photograph every defect with a measurement reference in frame.
- Note the GPS location or a sketch of where each defect appears on the property.
- Log all repairs made, including the contractor, materials used, and date of completion.
Proper documentation of asphalt inspections acts as a liability management tool, protecting property owners from legal claims by demonstrating due diligence. If a visitor trips and falls on your property, a documented inspection history showing regular maintenance is your primary legal defense. Treat your inspection records the same way you treat your insurance policy: you hope you never need them, but you are glad they exist when you do.
Integrating your inspection records with a maintenance calendar also helps you budget accurately. When you can see that a section was crack-filled two years ago and sealcoated three years ago, you know exactly when each treatment is due again.
Key Takeaways
A complete asphalt inspection checklist, run twice yearly and documented thoroughly, is the most cost-effective way to protect pavement from structural failure and legal liability.
| Point | Details |
|---|---|
| Inspect twice yearly at minimum | Run spring and fall inspections, plus checks after any severe weather event. |
| Cover all eight core areas | Evaluate surface condition, drainage, markings, ADA compliance, hazards, lighting, edges, and records. |
| Know structural from surface damage | Alligator cracking and potholes require base repair; surface wear responds to sealcoating and crack filling. |
| Document every finding | Date-stamped photos and written records protect you legally and support accurate maintenance budgeting. |
| Use the right tools | An infrared thermometer adds significant diagnostic accuracy beyond what a visual walkthrough alone can reveal. |
What most property owners miss during an asphalt inspection
After years of working with property owners across the Greater Toronto Area, our team at Asphaltworkx has seen the same mistake repeated more than any other: people walk their asphalt, see a fresh sealcoat, and assume the surface is healthy. Fresh sealcoating often hides structural problems like alligator cracking. The surface looks uniform and dark, but the base underneath is failing.
The fix is simple. Walk the surface slowly and press down with your heel in areas that look slightly uneven or discolored beneath the sealcoat. Soft or spongy areas during inspection indicate base-layer failure requiring professional attention. A healthy asphalt surface feels firm and unyielding underfoot. If it flexes, the problem is below the surface, and no amount of sealing will fix it.
We also see property owners underestimate drainage. A slope that looks adequate to the eye can still pool water at low points after heavy rain. That standing water does not just sit there. It works its way into every small crack, softens the base, and accelerates deterioration from below. Checking your drainage performance is not optional. It is the single inspection step that prevents the most expensive repairs.
The last thing I want property owners to take away from this is that inspections are only worth doing if you act on what you find. A checklist sitting in a drawer does nothing. When your inspection reveals cracks wider than 1/4 inch, soft spots, or standing water, those findings need to go on a repair schedule within the same season.
— Asphalt
Professional asphalt services from Asphaltworkx
When your inspection reveals damage that goes beyond DIY maintenance, Asphaltworkx provides professional sealing, crack repair, and full pavement restoration for residential and commercial properties across the Greater Toronto Area.
Our team assesses your surface condition during every service visit, so you get an expert evaluation alongside the repair work. Whether your checklist turns up minor surface oxidation or signs of base-layer failure, we match the right treatment to the actual problem. Professional asphalt sealing protects your pavement from water infiltration, UV oxidation, and freeze-thaw damage, extending surface life by years when applied at the right time. Contact Asphaltworkx to schedule a professional assessment and get a clear picture of what your pavement actually needs.
FAQ
What is an asphalt inspection checklist?
An asphalt inspection checklist is a structured evaluation tool used to assess surface condition, drainage, safety markings, ADA compliance, and structural integrity in a repeatable, documented process. It is also called a pavement condition assessment in professional practice.
How often should you inspect asphalt surfaces?
Property owners should inspect asphalt at least twice per year, in spring and fall, with additional checks after severe weather events such as heavy rain or ice storms.
What does alligator cracking mean on asphalt?
Alligator cracking signals base-layer or subgrade failure, not surface wear. Surface patching is a temporary measure only. Professional base repairs are required to stop the damage from recurring.
Why does drainage matter in an asphalt inspection?
Standing water accelerates asphalt deterioration by penetrating cracks, softening the base, and expanding damage through freeze-thaw cycles. A minimum 2% slope is the accepted standard to keep water moving off the surface.
How does documentation protect property owners legally?
Detailed inspection records with photos demonstrate due diligence in safety maintenance, which is the primary defense against liability claims from slip-and-fall incidents on your property.
